Description

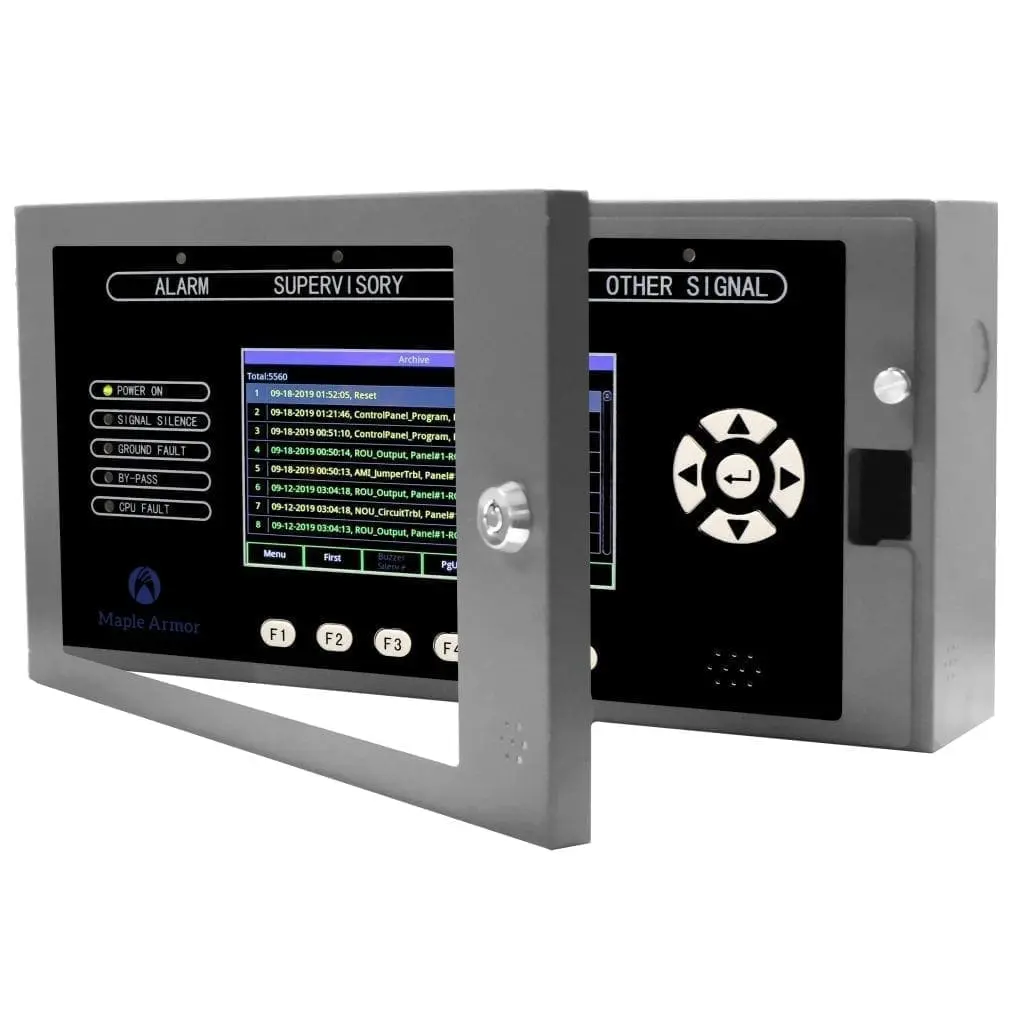

The FW123 is an intelligent remote compact annunciator designed to be used with the FW106 or the FW106S control panels. The LCD can display 8 simultaneous events. Users can browse more events by pressing the up/down buttons.
FEATURES
- Protected by a lockable cover
- UL / ULC listed
- Fully configurable from the panel with password protection\
- 24v DC operation
- Up to 4 Annunciators for each panel
- Large 7″ LCD display with 800×480 resolution
- Available in Red or Dark Grey
- Circuit topology supports Class B
The AMI is the main control unit of the FW123 annunciator, which integrates the CPU board, 4 signal status LEDs, 5 system status LEDs, 4 navigation buttons, and 1 enter button, 6 functionality buttons and a buzzer. Includes: CPU board, LCD, Keypad, LED, buzzer, etc.
